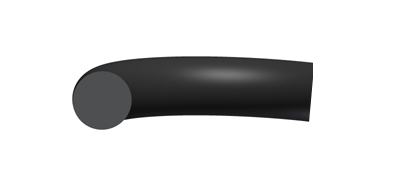

O Ring Cords NBR - O-Rings NBR Cords ( Seals and Gaskets)

This rubber O-Rings cord offers excellent resistance to a wide range of oil, hydraulic fluids, water and alcohols as well as general purpose. NBR / Nitrile Oring cord are available in Al Bahri stock in wide range size 1 to 30 mm in standard shore A 70.
Temperature Range -30°C to+120°C



Used in almost in every industry but especially in non-moving machinery and in static sealing applications, e.g. as flange or cover seals.

For special dimensions, O-ring cord has a clear advantage as the application can be customised to the solution in question, while being a relatively low-cost solution.

Good chemical resistance to mineral oils and greases and hydraulic oils. Not suitable for outside use because of poor resistance to ozone and UV rays.

INSTALLATION
O-rings are fitted into the groove by hand. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation all individual parts of the seal must be oiled with system oil.
