Detail

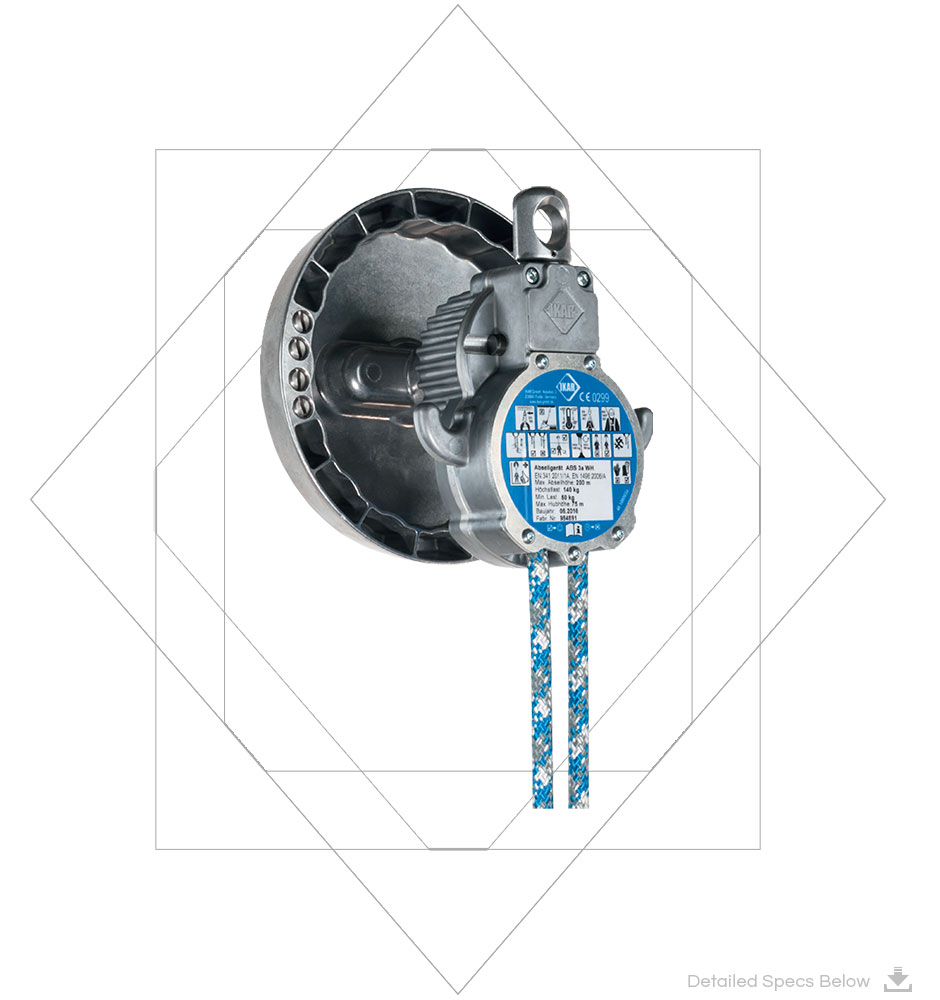

The controlled descent device ABS 3a WH with rescue hoisting facility utilizes an integrated lifting facility with switchable reverse lock and is, therefore, the ideal device for the third party rescue of persons suspended in their personal fall protection equipment following an arrested fall.

During the descent process, the centrifugal brake keeps the device at a constant speed during the entire descent. With the help of the new deviation point on the device, the descent speed can be regulated.

The ABS 3a WH is the ideal device for self-rescue/multiple evacuations or for training measures.

Model Number : 42-ABS 3a WH

Housing : Aluminum

Lifeline : IKAR kernmantle rope Ø 10.5mm DIN EN 1891

Features : The switched-on reverse lock acts as a ratchet system, to ensure that during a rescue, the casualty will only travel in an upward direction, therefore there is no danger of the casualty falling

Nominal Load : 140kg

Lifting nominal load and Lifting performance : Load: 140kg, Performance: 75m

Proof Load : EN 341:175kg, 1496:210kg

Static proof load : 20kN

5600 descent meters with nominal load: 140kg, 15200 descent meters with minimum load: 50kg

Maximum descent height and speed : Height: 200m, Speed: 1.5m/s

Standard : EN 341:2011/1A, EN 1496:2006/A, ANSI/ASSE Z359.4-2013
